Yağmurlama sulama sistemleriSprinkler irrigation systems

Mandallı yağmurlama boruları ve tüm ek parçaları, monoblok (tek parça) üretimle. 2007’de tüm yedek parçalarda monoblok üretimi gerçekleştiren ilk firma olduk.Latched sprinkler pipes and every fitting, made as monoblock (one-piece) parts. In 2007 Akplas became the first company to make all sprinkler spare parts as monoblock.

Teklif alınGet a quote
Neden yağmurlamaWhy sprinkler

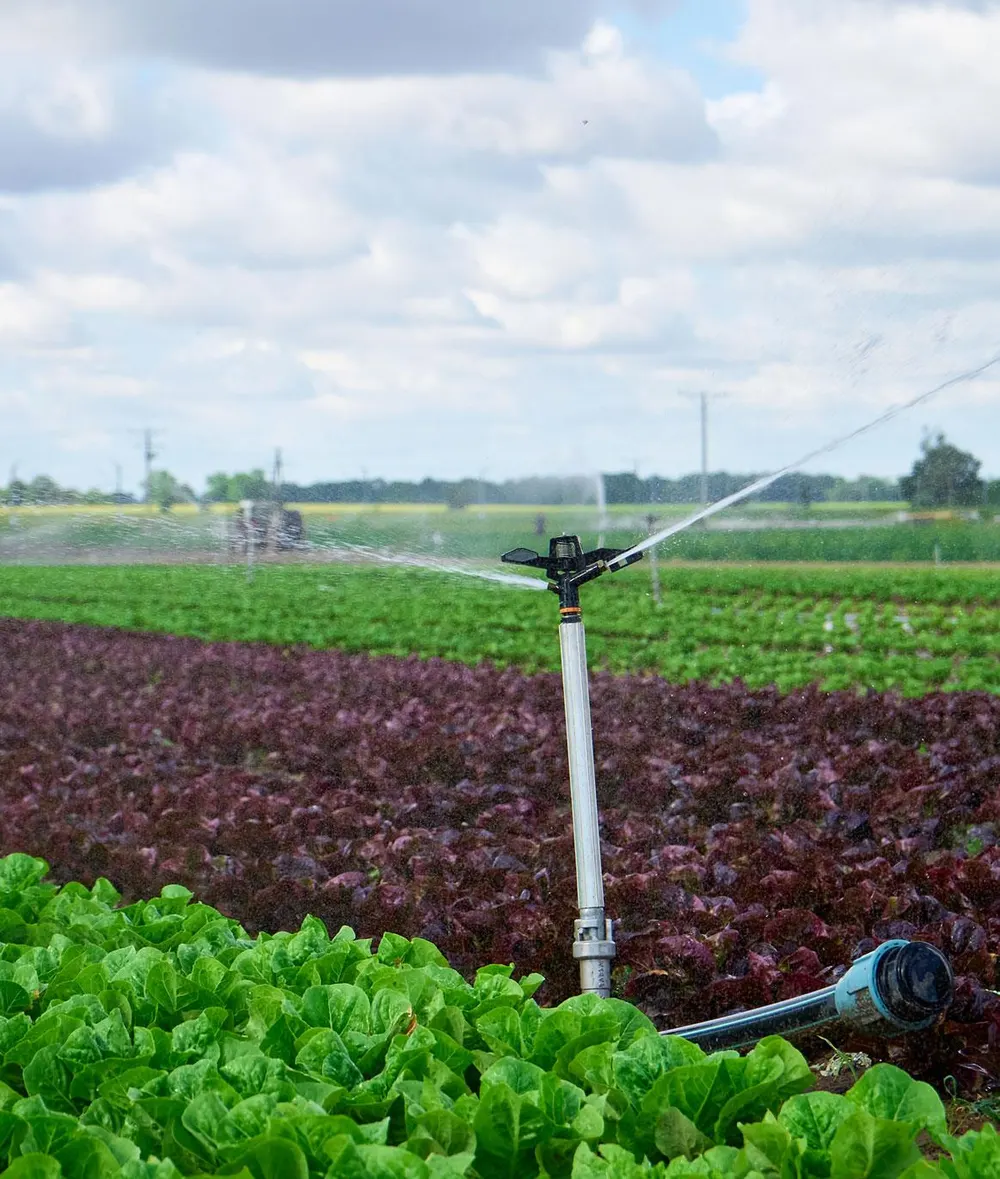

Geniş alanlarda hızlı ve dengeli sulamaFast, even coverage over large fields

  • Buğday, arpa, yonca gibi tahıl ve yem bitkileri için ideal.Ideal for cereals and forage such as wheat, barley and alfalfa.
  • Patates, soğan, pancar ve havuç gibi kök bitkilerinde de kullanılır.Also used for potatoes, onions, beet and carrots.
  • Mandallı bağlantı: alet gerektirmeden hızlı kurulum ve taşıma.Latch couplings: quick, tool-free set-up and moving.
  • Ø50’den Ø200 mm’ye, PN6–PN16 basınç sınıfları.Ø50 to Ø200 mm, pressure classes PN6–PN16.
  • Yaylı kelepçe ürün grubu Akplas patentidir (2003).The spring-clamp range is an Akplas patent (2003).

3D ürünler3D products

Sahada nasıl çalıştığını görün: sprinkleri çalıştırın, vanaları patlatın.See how they work: run the sprinkler, explode the valves.

Ø75 Vana3D
Ø75Ø75Ø75 VanaØ75 ValveMandallı küresel vanaBall valve with latch
Küresel Vana3D
3201 · s.83201 · p.8Küresel VanaBall Valve32'lik32 mm
Dirsek3D
3113 · s.123113 · p.12DirsekElbowMandallıWith latch
Abot3D
3108 · s.83108 · p.8AbotAbotHidrantHydrant
Sprink 10403D
5010 · s.105010 · p.10Sprink 1040Sprink 1040Darbeli yağmurlama başlığıImpact sprinkler

Mandallı yağmurlama borularıLatched sprinkler pipes

5, 5,6 ve 6 metre boylarında; standart, PN8, PN10 ve PN16.5, 5.6 and 6 metre lengths; standard, PN8, PN10 and PN16.

Mandallı yağmurlama boruları (standart)Latched sprinkler pipes (standard)20 kodcodes

5 metremetre

KodCodeÇap (mm)Diameter (mm)
3002.050.105050
3002.063.105063
3002.075.105075
3002.090.105090
3003.110.1050110
3003.125.1050125
3004.140.1050140
3004.160.1050160

6 metremetre

KodCodeÇap (mm)Diameter (mm)
3002.050.106050
3002.063.106063
3002.075.106075
3002.090.106090
3003.110.1060110
3003.125.1060125
3004.140.1060140
3004.160.1060160

5,6 metremetre

KodCodeÇap (mm)Diameter (mm)
3002.075.105675
3002.090.105690
3003.110.1056110
3003.125.1056125
PN8 mandallı yağmurlama borularıPN8 latched sprinkler pipes12 kodcodes

5 metremetre

KodCodeÇap (mm)Diameter (mm)
3012.075.105075
3012.090.105090
3012.110.1050110
3012.125.1050125
3012.140.1050140
3012.160.1050160

6 metremetre

KodCodeÇap (mm)Diameter (mm)
3012.075.106075
3012.090.106090
3012.110.1060110
3012.125.1060125
3012.140.1060140
3012.160.1060160
PN10 mandallı yağmurlama borularıPN10 latched sprinkler pipes4 kodcodes

5 metremetre

KodCodeÇap (mm)Diameter (mm)
3013.160.1050160 · 4 mandal
3013.200.1050200 · 6 mandal

6 metremetre

KodCodeÇap (mm)Diameter (mm)
3013.160.1060160 · 4 mandal
3013.200.1060200 · 6 mandal
PN16 mandallı yağmurlama borularıPN16 latched sprinkler pipes2 kodcodes

5 metremetre

KodCodeÇap (mm)Diameter (mm)
3014.200.1050200

6 metremetre

KodCodeÇap (mm)Diameter (mm)
3014.200.1060200
Mandallı damla sulama hat borularıLatched drip irrigation line pipes20 kodcodes

5 Metre Mandallı Damla Sulama Hat Boruları

KodCodeÇap (mm)Diameter (mm)
3002.050.105350
3002.063.105363
3002.075.105375
3002.090.105390
3003.110.1053110
3003.125.1053125
3004.140.1053140
3004.160.1053160

6 Metre Mandallı Damla Sulama Hat Boruları

KodCodeÇap (mm)Diameter (mm)
3002.050.106350
3002.063.106363
3002.075.106375
3002.090.106390
3003.110.1063110
3003.125.1063125
3004.140.1063140
3004.160.1063160

5,6 Metre Mandallı Damla Sulama Hat Boruları

KodCodeÇap (mm)Diameter (mm)
3002.075.105875
3002.090.105890
3003.110.1058110
3003.125.1058125

Ek parçalarFittings and spare parts

Hattı kurmak için gereken her parça: abot, dirsek, te, redüksiyon, motopomp bağlantıları, mandal ve yayları.Everything needed to build the line: hydrants, elbows, tees, reductions, pump connections, latches and springs.

ContaGasket9 kodcodes
KodCodeÇap (mm)Diameter (mm)
5136.050.100050
5136.063.100063
5136.075.100075
5136.090.100090
5136.110.1000110
5136.125.1000125
5136.140.1000140
5136.160.1000160
5136.200.1000200
Abot (hidrant)Hydrant7 kodcodes

3D modelini açın →Open the 3D model →

KodCodeÇap (mm)Diameter (mm)
3108.050.100050
3108.063.100063
3108.075.100075
3108.090.100090
3108.110.1000110
3108.075.400075 · Abot 4A
3108.075.400175 · Abot 4B
İstavrozCross29 kodcodes
KodCodeÇap (mm)Diameter (mm)
3119.050.105050/50
3119.063.105063/50
3119.063.106363/63
3119.075.106375/63
3119.075.107575/75
3119.090.107590/75
3119.090.109090/90
3119.110.1050110/50
3119.110.1063110/63
3119.110.1075110/75
3119.110.1090110/90
3119.110.1110110/110
3119.125.1050125/50
3119.125.1063125/63
3119.125.1075125/75
3119.125.1090125/90
3119.125.1110125/110
3119.125.1125125/125
3119.140.1075140/75
3119.140.1090140/90
3119.140.1110140/110
3119.140.1125140/125
3119.140.1140140/140
3119.160.1075160/75
3119.160.1090160/90
3119.160.1110160/110
3119.160.1125160/125
3119.160.1140160/140
3119.160.1160160/160
DirsekElbow8 kodcodes

3D modelini açın →Open the 3D model →

KodCodeÇap (mm)Diameter (mm)
3113.050.100050
3113.063.100063
3113.075.100075
3113.090.100090
3113.110.1000110
3113.125.1000125
3113.140.1000140
3113.160.1000160
TeTee29 kodcodes
KodCodeÇap (mm)Diameter (mm)
3115.050.105050/50
3115.063.105063/50
3115.063.106363/63
3115.075.106375/63
3115.075.107575/75
3115.090.107590/75
3115.090.109090/90
3115.110.1050110/50
3115.110.1063110/63
3115.110.1075110/75
3115.110.1090110/90
3115.110.1110110/110
3115.125.1050125/50
3115.125.1063125/63
3115.125.1075125/75
3115.125.1090125/90
3115.125.1110125/110
3115.125.1125125/125
3115.140.1075140/75
3115.140.1090140/90
3115.140.1110140/110
3115.140.1125140/125
3115.140.1140140/140
3115.160.1075160/75
3115.160.1090160/90
3115.160.1110160/110
3115.160.1125160/125
3115.160.1140160/140
3115.160.1160160/160
RedüksiyonReduction16 kodcodes
KodCodeÇap (mm)Diameter (mm)
3117.063.105063/50
3117.075.105075/50
3117.075.106375/63
3117.090.107590/75
3117.110.1075110/75
3117.110.1090110/90
3117.125.1075125/75
3117.125.1090125/90
3117.125.1110125/110
3117.140.1075140/75
3117.140.1090140/90
3117.140.1110140/110
3117.140.1125140/125
3117.160.1110160/110
3117.160.1125160/125
3117.160.1140160/140
Es (S bağlantı)S-connection6 kodcodes
KodCodeÇap (mm)Diameter (mm)
3121.075.100075
3121.090.100090
3121.110.1000110
3121.125.1000125
3121.140.1000140
3121.160.1000160
Hat vanasıLine valve5 kodcodes
KodCodeÇap (mm)Diameter (mm)
5002.050.100050
5002.063.100063
5002.075.100075
5002.090.100090
5002.110.1000110
Dişi motopomp (alüminyum)Female pump connection (aluminium)8 kodcodes
KodCodeÇap (mm)Diameter (mm)
5133.050.100050
5133.063.100063
5133.075.100075
5133.090.100090
5133.110.1000110
5133.125.1000125
5133.140.1000140
5133.160.1000160
Erkek motopomp (alüminyum)Male pump connection (aluminium)8 kodcodes
KodCodeÇap (mm)Diameter (mm)
5132.050.100050
5132.063.100063
5132.075.100075
5132.090.100090
5132.110.1000110
5132.125.1000125
5132.140.1000140
5132.160.1000160
Dişi motopomp (demir)Female pump connection (iron)8 kodcodes
KodCodeÇap (mm)Diameter (mm)
5133.050.101050
5133.063.101063
5133.075.101075
5133.090.101090
5133.110.1010110
5133.125.1010125
5133.140.1010140
5133.160.1010160
Erkek motopomp (demir)Male pump connection (iron)8 kodcodes
KodCodeÇap (mm)Diameter (mm)
5132.050.101050
5132.063.101063
5132.075.101075
5132.090.101090
5132.110.1010110
5132.125.1010125
5132.140.1010140
5132.160.1010160
Erkek başlıkMale head8 kodcodes
KodCodeÇap (mm)Diameter (mm)
3104.050.100050
3104.063.100063
3104.075.100075
3104.090.100090
3105.110.1000110
3105.125.1000125
3106.140.1000140
3106.160.1000160
Dişi başlıkFemale head8 kodcodes
KodCodeÇap (mm)Diameter (mm)
3103.050.100050
3103.063.100063
3103.075.100075
3103.090.100090
3103.110.1000110
3103.125.1000125
3103.140.1000140
3103.160.1000160
Dişi körtapaFemale end cap3 kodcodes
KodCodeÇap (mm)Diameter (mm)
3110.075.100075
3110.090.100090
3110.110.1000110
Erkek körtapaMale end cap8 kodcodes
KodCodeÇap (mm)Diameter (mm)
3111.050.100050
3111.063.100063
3111.075.100075
3111.090.100090
3111.110.1000110
3111.125.1000125
3111.140.1000140
3111.160.1000160
Akplas mandalAkplas latch5 kodcodes
KodCodeÇap (mm)Diameter (mm)
1201.001.100050–63
1201.007.100075
1201.002.100090–110
1201.003.1000125–140–160
1201.053.1000200
Akplas mandal pimiAkplas latch pin7 kodcodes
KodCodeÇap (mm)Diameter (mm)
1206.004.100050–63
1206.005.100075
1206.009.100090
1206.014.1000110
1206.015.1000125
1206.011.1000140–160
1208.008.1003200
Akplas mandal yayıAkplas latch spring4 kodcodes
KodCodeÇap (mm)Diameter (mm)
1205.004.100050–63
1205.001.100075–90–110
1205.002.1000125–140–160
1205.005.1000200
PVC uzatma borusu (beyaz)PVC riser (white)10 kodcodes
KodCodeUzunluk (cm)Length (cm)
3304.025.100032/25
3304.035.100032/35
3304.040.100032/40
3304.050.100032/50
3304.060.100032/60
3304.070.100032/70
3304.100.100032/100
3304.120.100032/120
3304.150.100032/150
3304.200.100032/200
PVC uzatma borusu (eko)PVC riser (eco)10 kodcodes
KodCodeUzunluk (cm)Length (cm)
5160.025.100032/25
5160.035.100032/35
5160.040.100032/40
5160.050.100032/50
5160.060.100032/60
5160.070.100032/70
5160.100.100032/100
5160.120.100032/120
5160.150.100032/150
5160.200.100032/200
Diğer bağlantı parçalarıOther connectors4 kodcodes

3D modelini açın →Open the 3D model →

KodCodeÜrünProduct
4801.001.1000Abot üstü redüksiyon / Hydrant adapter
3201.032.1000Küresel vana 32 / Ball valve 32
4602.017.1000Mini sprink adaptörü / Mini sprink adapter
1207.005.100032×32 kaval birleştirme / Riser connecting adapter

Sprinkler başlıklarıSprinkler heads

Basınca göre debi değerleri katalogdan alınmıştır.Flow rates by pressure, from the catalogue.

Yeni Sprink 1063New Sprink 10635 kodcodes
KodCodeAna nozulMainmmYardımcıSecondarymm2,5 barL/saL/h3,0 barL/saL/h3,5 barL/saL/h
5017.238.1382Ø3,82 2,381.3241.4491.564
5017.338.1040Ø4,0 3,381.3761.5111.626
5017.338.1045Ø4,5 3,381.6051.7621.897
5017.423.1050Ø5,0 4,231.8872.0642.231
5017.423.1055Ø5,5 4,232.1262.3252.502

KoliBox: 75 adetpcs · Yedek nozullarSpare nozzles:

5027.000.1104 · Ø2,385027.000.1105 · Ø3,385027.000.1106 · Ø3,825027.000.1111 · Ø4,05027.000.1110 · Ø4,235027.000.1114 · Ø5,05027.000.1115 · Ø5,5
Sprink 1040Sprink 10404 kodcodes

3D modelini açın ve çalıştırın →Open and run the 3D model →

KodCodeAna nozulMainmmYardımcıSecondarymm2,5 barL/saL/h3,0 barL/saL/h3,5 barL/saL/h
5010.040.1050Ø5,04,02.1582.3662.554
5010.045.1050Ø5,04,52.3772.6062.814
5010.045.1060Ø6,04,52.9433.2293.506
5010.050.1060Ø6,05,03.2913.6033.880

KoliBox: 50 adetpcs · Yedek nozullarSpare nozzles:

5020.000.1211 · Ø4,05020.000.1216 · Ø4,55020.000.1271 · Ø5,05020.000.1272 · Ø6,0
Yeni Mini Sprink 1042New Mini Sprink 10423 kodcodes
KodCodeAna nozulMainmmYardımcıSecondarymm2,5 barL/saL/h3,0 barL/saL/h3,5 barL/saL/h
5034.185.1028Ø2,8 1,85740802898
5034.185.1315Ø3,15 1,858559381.011
5034.235.1315Ø3,15 2,351.1881.3031.397

KoliBox: 200 adetpcs · Yedek nozullarSpare nozzles:

5044.000.1105 · Ø1,855044.000.1107 · Ø2,355044.000.1109 · Ø2,805044.000.1110 · Ø3,15
